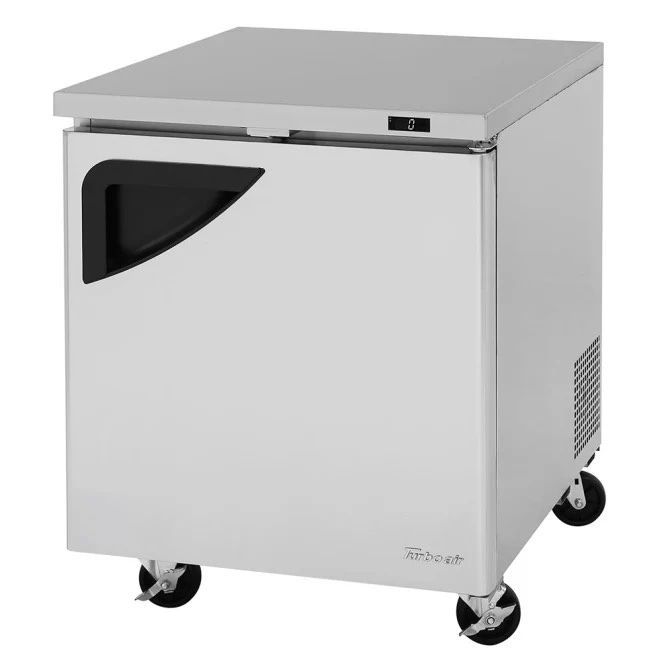

Turbo Air TUF-28SD-N Description
The Turbo Air TUF-28SD-N Super Deluxe undercounter freezer provides temperatures between -10 and 0 degrees Fahrenheit, and its digital display makes it easy to monitor the interior temperatures. To prevent a premature system failure, the condenser is brushed every day by a self-cleaning device, removing dust buildup. The evaporator is treated to resist corrosion. Servicing the refrigeration system is simple since it is self-contained.
Constructed of stainless steel, the 221⁄2-inch-by-17-inch shelf in the Turbo Air TUF-28SD-N Super Deluxe undercounter freezer is durable and corrosion resistant. Product in the cabinet is illuminated by LED lighting. Foamed-in-place polyurethane insulation retains cold air and the self-closing door keeps the cold temperatures in the cabinet. Since the door has an ergonomically-designed handle, it is easy to open.
Product Details
(1) 221⁄2-in. x 17-in. shelf is constructed of stainless steel to simplify cleanup
Interior is illuminated by LED lighting
Interior and exterior are constructed of stainless steel for corrosion and minor damage resistance
Polyurethane insulation is foamed in place to retain cold temperatures
Door has a self-closing design to keep cold air in the cabinet
Ergonomically-designed door handle provides comfort
Magnetic door gasket creates a seal and is removable without tools
Moving the unit is simple thanks to 4-in. dia. swivel casters
115 V/60 Hz/1 ph, 1.7 A, 1⁄4+ HP, 9-ft. cord with a NEMA 5-15P plug
Overall Dimensions: 271⁄2 in. W x 31 in. D x 363⁄8 in. H
Self-Contained Refrigeration System
-10 to 0 degrees F temperature range
Easily monitor the temperature with a digital display
R-290 hydrocarbon refrigerant is eco-friendly
Servicing the system is simple since it is self-contained
Condenser is brushed every day by a self-cleaning device to eliminate dust accumulation
Coated evaporator is corrosion resistant
Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
Key Features
Super Deluxe undercounter freezer, One-section, Self-Cleaning Condenser, Digital temperature control & monitor system, LED interior lighting & fan control, Stainless steel interior and exterior, ABS door liner, (1) door with recessed handles, Left hinged model available, (1) stainless steel shelves, 4″ casters, Anti-corrosion coated evaporator, Self-contained, 6.8 cu.ft., 115v/60/1, NEMA 5-15P, 2.2 Amps, 1/3 HP, ETL-Sanitation, cETLus
Warranty
5 Year Parts & Labor
7 Year Compressor Warranty
Features
Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products in refrigerators. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Digital temperature control & monitor system
Keeps food products safe by maintaining constant temperatures. External digital display allows for easy monitoring.
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Stainless steel cabinet construction
The Turbo Air Super Deluxe model boasts a stainless steel interior and exterior (galvanized steel back & bottom). It guarantees the utmost in cleanliness and long product life. The Super Deluxe can add a touch of style to the most refined setting.
LED interior lighting & fan control
Energy efficient LED lighting lights every corner, making items easy to find. Fan control function automatically shuts off the fan when the door
is open, which prevents hot air from being drawn in, thus maintaining the cool inner temperature.
Sturdy, clean stainless steel shelving
Shelves are the most important part of cleanliness as they come in direct contact with food. After a while, PVC coated wire shelves may peel, rust and lead to unsanitary conditions. Only the Turbo Air Super Deluxe series uniquely provides stainless steel shelving.
Ergonomically designed doors
Customers’ fatigue fades away with easy grip handles and doors that open effortlessly. These features along with self-closing doors make this the ultimate choice in customer convenience. ABS sheet door liners resist water condensation with thermal efficiency.
High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using high density, CFC free polyurethane insulation.
Magnetic door gasket
Magnetic door gaskets are of one-piece construction, removable without tools for ease of cleaning and replacement.
Freezer holds -10°F ~ 0°F for the best in frozen food preservation
• TUF-28SD-N: Right hinged door
• TUF-28SD-N-L: Left hinged door
STANDARD FEATURES
• Anti-corrosion coated evaporator
• Self-contained system
• 4″ dia. swivel casters with locks on the front set
• Door locks
Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-ethylhexyl) phthalate (DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
Parts & Accessories
OPTIONAL ACCESSORIES
• 1” caster, ½” diameter & 13 TPI: S28R813660 (non-brake)
• 2.5″ caster, ½” diameter & 13 TPI: 30265H0100 (non-brake), 30265H0200 (w/ brake)
• 5″ caster, ½” diameter & 13 TPI: M726500100 (non-brake), M726500200 (w/ brake)
• Leveling leg, ½” – 13 TPI x 1.54”: LFM1213566
• 6″ ABS plastic leg: 30221M0200
• 6″ stainless steel leg: 30221M0600
• Additional stainless steel shelf: M277800100
• Back splash guard: TU-28B
Spec Sheet:
https://turboairinc.com/wp-content/uploads/2020/11/TUF-28SD-N-L-2.pdf
Manual:
https://turboairinc.com/wp-content/uploads/2019/06/TUR_TUF_HC.pdf
